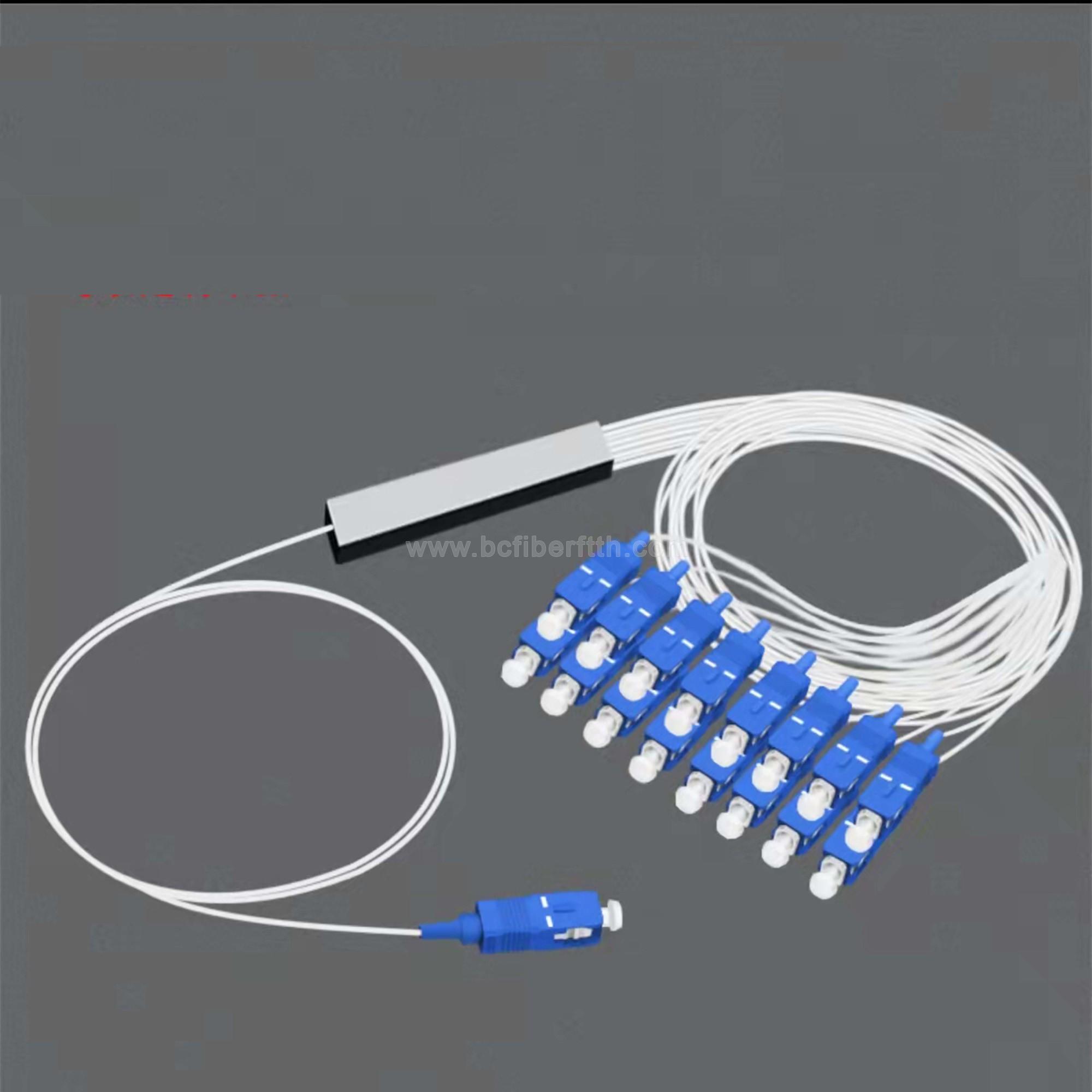

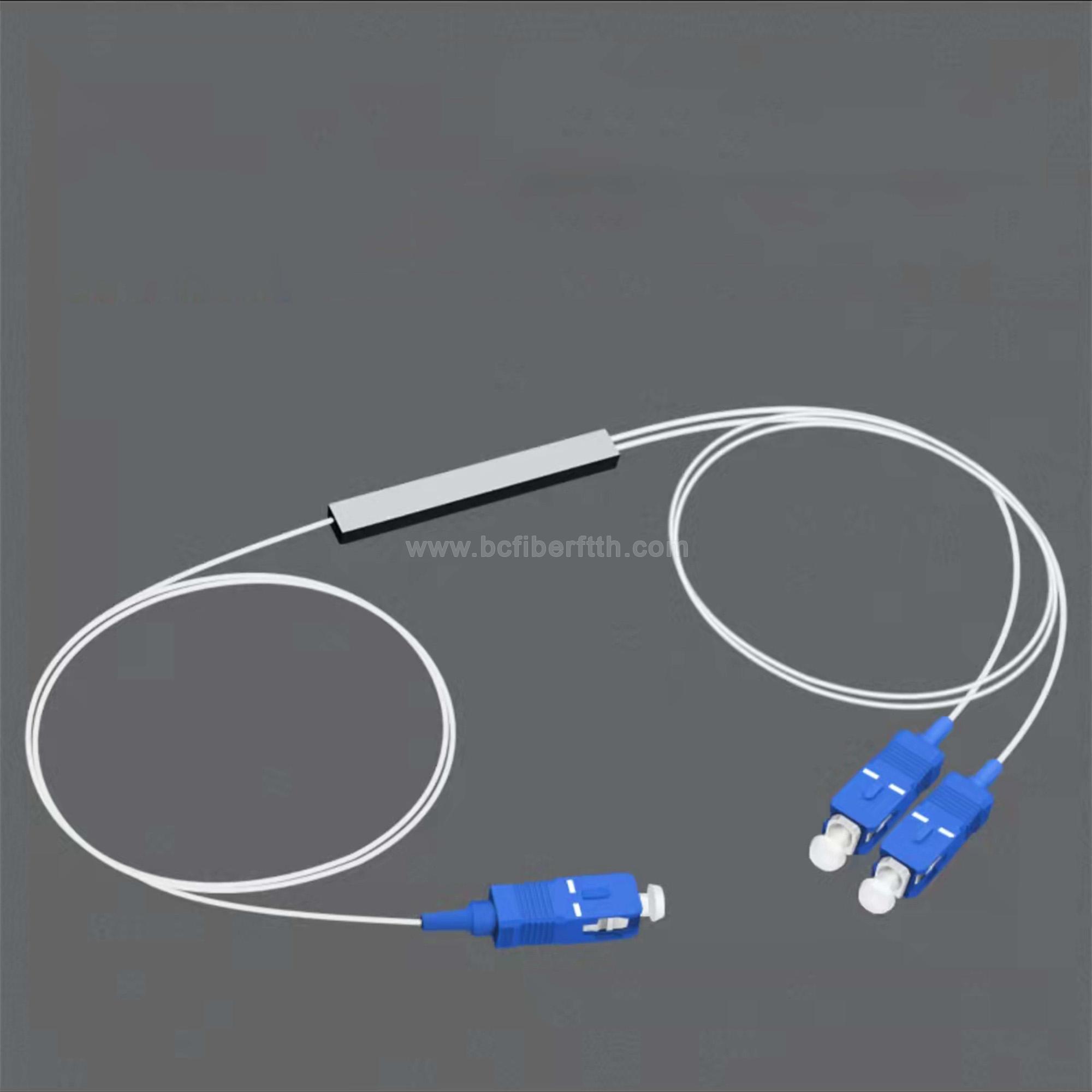

Mini Type PLC Splitter SC/UPC1*2 1*4 1*8 1*16 1*32 1*64

  • Product Item：SC/UPC
  • PLC Splitter
  • Mini Type PLC Splitter
  • SC/UPC1*2
  • Splitter
    • 1x2 ABS box PLC splitter  , 1x4 ABS box PLC splitter  , 1x32 Steel tube plc splitter  , 1x16 Steel tube plc splitter  , 1x8 Steel tube plc splitter  , 1x12 Steel tube  , plc splitter 1x64  , Steel tube plc splitter  , 1*2 Steel tube  , plc splitter 1*4  , Steel tube plc splitter  , 1*8 fiber optic  , PLC splitter 1*12  , fiber optic PLC splitter  ,  1*16 fiber optic  , PLC splitter 1*32  , fiber optic PLC splitter  , 1*64 fiber optic  , PLC splitter SC/APC fiber optic PLC splitter  , 1x8 modue type PLC splitter  , 1x12 modue type PLC splitter  , 1x64 modue type  , PLC splitter 1*2  , modue type PLC splitter  , plc splitter 1*12  , plc splitter  ,  fiber plc splitter plc fiber splitter  ,  fiber optic plc splitter plc fiber optic splitter  , plc splitter manufacturer 1x2 plc fiber splitter  , plc splitter chip fiber optic PLC splitter  , Steel tube plc splitter plc splitter 1*16  ,  plc splitter 1*32  , plc splitter 1*64  ,  plc splitter SC/APC  , 1x2 fiber plc splitter  , plc fiber optic splitter1*4  ,  plc fiber optic splitter1*8  , plc fiber optic splitter1*12  ,  plc fiber optic splitter1*16  , plc fiber optic splitt
    Inquiry Send Email

    Description


    Definition

    Planar light-wave circuit splitter (PLC Splitter) is a type of optical power management device that is fabricated using silica optical wave-guide technology.It is used to split a fiber optic beam into several beams at a certain splitting ratio.It is an important passive device in passive optical network.


    Product Features

    • Low Insertion loss
    • Low PDL
    • Excellent channel-to-channel uniformity
    • High return loss and Good repeatability
    • Wide wavelength range

    Applications

    • LAN, WAN and Metro Networks
    • FTTH project & FTTX Deployments
    • CATV System
    • GPON, EPON
    • Fiber Optic Test Equipment
    • Data-base Transmit Broadband Net

    Compliance

    • Telcordia GR-1209-CORE-2001
    • Telcordia GR-1221-CORE-1999
    • YD-T2000.1-2009
    • RoHS


    Parameters 1×2 1×4 1×8 1×16 1×32 1×64 1×128
    Operating  Wavelength  (nm) 1260～1650
    Fiber  Type G657A  or  customer  specified
    Insertion  Loss  (dB) 3.8 7 10.2 13.5 16.8 20.5/21.0 24.2/24.5
    Loss  Uniformity  (dB) 0.4 0.5 0.8 1 1.2 2 2.5
    Return  Loss  (dB) 55 55 55 55 55 55/50 55/50
    Polarization  Dependent Loss(dB) 0.2 0.2 0.2 0.2 0.2 0.35 0.35
    Directivity  (dB) 55 55 55 55 55 55 55
    Wavelength  Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5 0.5
    Temperature  Stability (-50～ 85  ℃)(dB) 0.4 0.4 0.4 0.5 0.5 0.5 0.5
    Operating  Temperature  (℃) -50～85
    Storage  Temperature  (℃) -50～85
    Device  Dimension (mm)  (L×W×H) 40×4×4 40×4×4 40×4×4 50×7×4 50×7×4 60×12×4 120x26x10
    Mini-Module  Dimension (mm)  (L×W×H) 40×7×4 55×7×4 55×7×4 60×12×4 80×20×6 100X40X6 120x50x12
