Supply Good Quality 4 Cores FTTH Fiber Optic mini Termination box/4 ports Desktop Small ftth Box/Mini Fiber Optic Equipment

  • Product Item：N-01-4
  • Product name: 4 ports Desktop Small ftth Box
  • Color: White
  • Installation method: Wall-mounted
  • Application: FTTH FTTB FTTX Network
    • Optical Fiber Distribution Box  ,  optical fiber cable distribution box  ,  fiber optic termination box  ,  Fiber Terminal Box  ,  Outdoor Fiber Terminal Box  ,  Optical Distribution Boxes  ,  fiber termination box wall mount  ,  Fiber Optic Wall Mount Termination Boxes  ,  Fiber optic terminal box  ,  optical distribut
    Inquiry Send Email

    Description

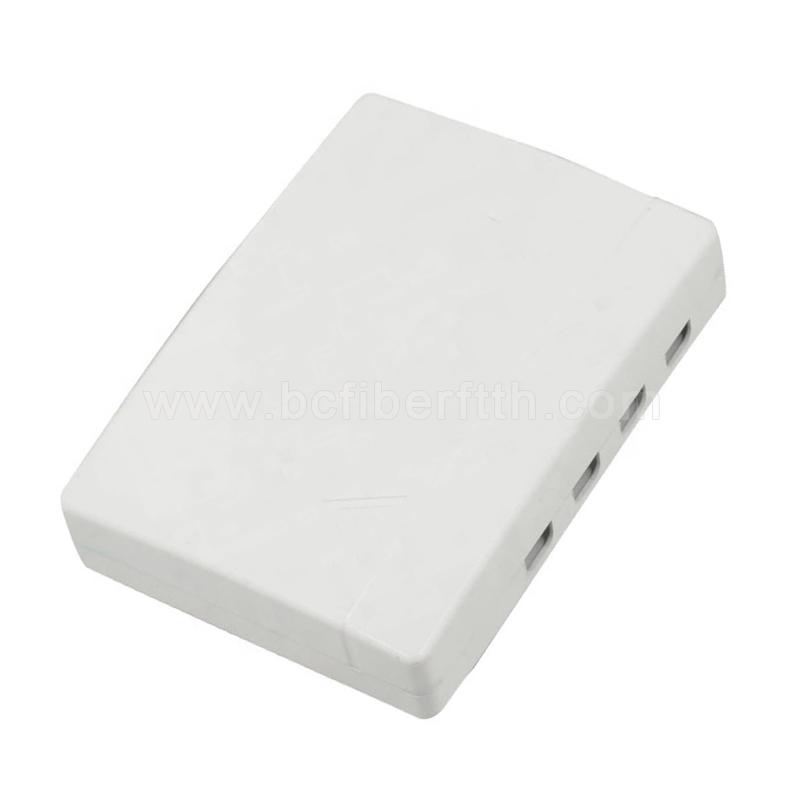

    4 core FTTH indoor fiber termination box
    The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTH communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTH network building.
    Product Name
    4 ports Desktop Small ftth Box
    Material
    ABS
    Dimension (mm):
    150*120*30mm
    Ports
    4
    Adapter installation
    4 (SC LC )
    Pigtail installation
    support
    Installation method
    Wall-mounted
    Application
    FTTH FTTB FTTX Network
    Environmental Requirement
    Main Technical Data
    Capacity
    Working temperature
    -40℃~+75℃
    Insertion loss
    ≤0.2dB


    4 SC/LC adaptors
    Relative humidity
    ≤85℃(+30℃)
    UPC return loss
    ≥50dB
    Atmospheric
    70KPa~106KPa
    APC return loss
    ≥60dB
